Die Spotting Machine

Type: SX800YC-II

Table Size: 4200*3500mm

Mold Opening Force: 190T

Clamping Force: 800T

Max Table Load Capacity: 160T

More>

Gantry CNC

Type: AWEA SP-2016

Travel Distance: 2100*1600*760mm

Rated Spindle Speed: 12000rpm

Positioning Accuracy: ±0.015mm

Max Table Load Capacity: 8000KG

More>

Four-axis Double-table CNC

Type: OKUMA MAR-630H-e
Travel distance: 1000*800*810mm
Rated spindle speed: 5000rpm
Process Precision: <0.003mm

Max Table Load Capacity: 1500KG

More>

Five-axis CNC

Type: MAKINO D500
Travel distance: 500*1000*500mm
Rotation diameter (Max): Ф650mm
Rated spindle speed: 20000rpm
Positioning accuracy: 0.0025mm

More>

Five-axis CNC

Type: DMG 75 monoBLOCK
Travel distance: 750*650*560mm
Rotation diameter (Max): Ф650mm
Rated spindle speed: 20000rpm
Positioning accuracy: 0.006mm

More>

Metallographic Microscope

Type: Novel MR5000
Eyepiece : WF10X/22
Objective lens: 5X, 10x, 20X, 50X, 100X
Kohler lighting: 24V/100W
Fine adjustment: 1μm
Moving range: 30mm

More>

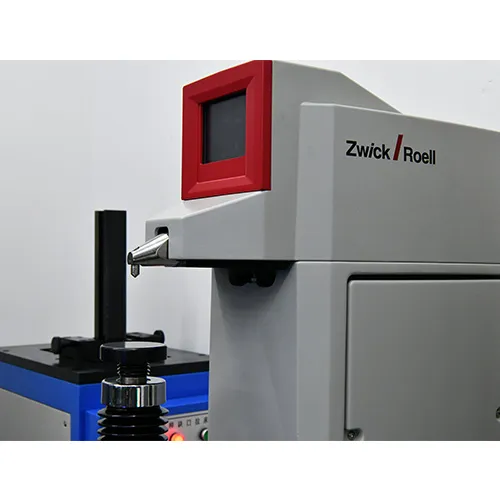

Rockwell Hardometer

Type: Zwick/Roell ZHR 4150TK
Test load: 10, 60, 100, 150kgf
Scale of hardness: HRA, B, C, D, E, F, G, H, K, L, M, P, R, S , V
Throat depth: 250mm
Measurable height: 150mm
Diameter of surface correction: 3-20mm
Holding time: 1-50s

More>

Pendulum Impact Testing Machine

Type: WANCE PIT452D
Impact energy(Max): 450J
Pendulum pre elevation angle: 150°
Angular resolution: 0.025°
Impact absorbing energy: ≤0.4%
Impact speed: 5.24m/s

More>

Optical Emission Spectrometer

Type: Skyray OES 8000S
Diameter of Rowland grating: 400mm
Line density of grating: 2400l/mm
Analysis time: <40 sec
Wavelength range: 0.006mm
Resolution: 10pm

More>

X-ray Measuring Machine

Type: X-ray Global XT 7600-160KV

Measuring range: 500*500*700mm

Penetrable thickness (max): 2400l/mm（Al/Mg)

Detection precision (min): 0.14mm

Bearing: 75KG

Radiation leakage: <0.5μGy/h

More>

3D Scanner

Type: GOM ATOS Campact Scan
Pixels: 12 million
Resolution: 4112*3008
Measuring range: 110-1500mm
Detection precision: 0.01-0.03mm
Lens distance: 0.04-0.15mm

More>

Die Spotting Machine

Type: SHUNXING SX300JM-YC

Table size: 2200*1800mm

Mold opening space: 2300mm

Clamping force: 300tons

Mold opening force: 56tons

More>

Die Casting Machine

Type: UBE 650T

Clamping force: 1650tons
Tiebar clearance: 1500*1300mm
Casting force (Max): 1295KN
Casting speed: 0.1~10m/s
Casting weight (Max): 35KG (AL)

More>

CNC

Type: MAKINO F5

More>

Fitting Machine

Type: NICE NC70-1007

Table size: 1000*700mm

Mold opening space: 1100mm

Clamping force: 70 tons

More>

EDM

Type: HEPK Double-head HE180

More>

CNC

Type: FANUC D14MiA

More>

WEDM

Type: TELUE TL 5040H

More>

CNC

Type: DAHLIH MCV-1200

More>

CNC

Type: DAHLIH MCV-860

Travel distance: 860*550*550mm

Rated spindle speed: 15000rpm

Positioning accuracy:0.005mm

More>

EDM

Type: DAEHAN TURBO 700

More>

Die Casting Machine

Type: LK DCC500/DCC800

More>
